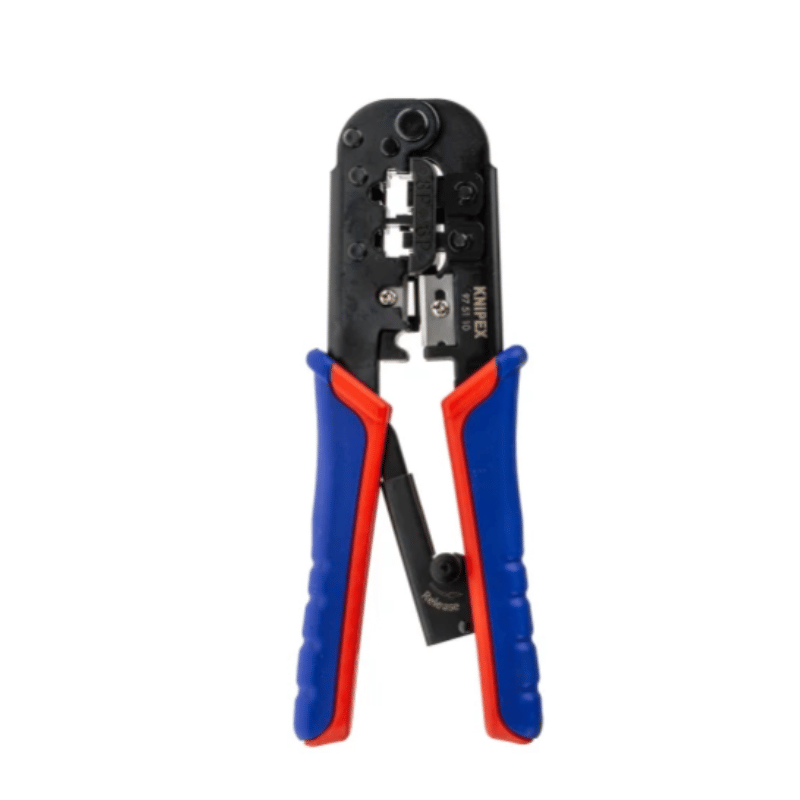

Knipex Crimping Tool, 190 mm Overall, 97 51 10
Regular price
RM368.00 MYR
Looking to arrange for delivery directly to your clients warehouse in ELCC, ABF, MLNG, ASB, KSB? Reach out to our dedicated sales team.
We can deliver using your company's DO for a more efficient and cost saving delivery solution.
Couldn't load pickup availability
Product Details
Western plug crimping tool - RJ 11 / 12 / 45

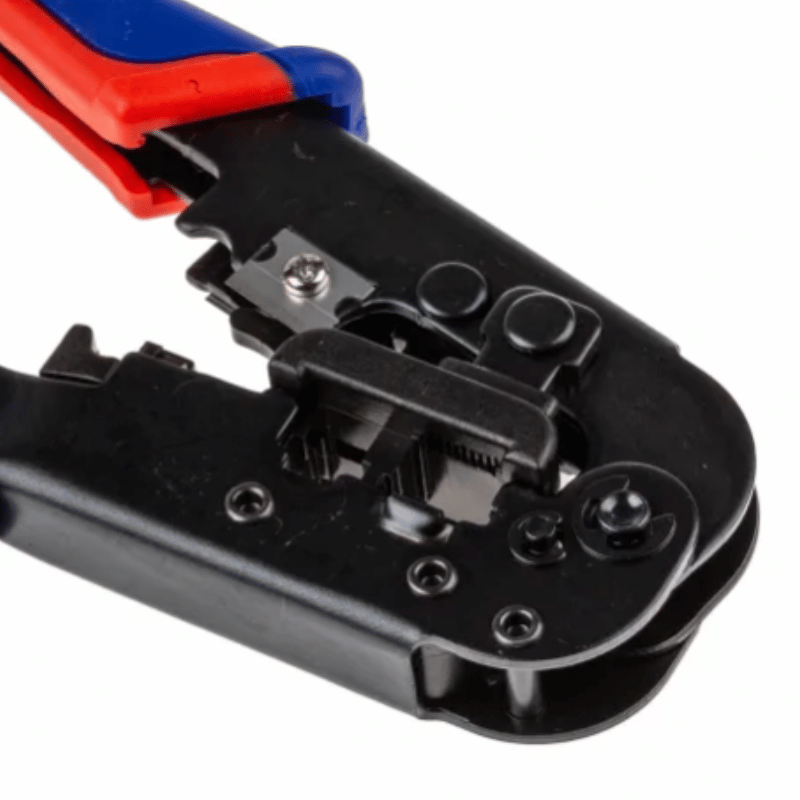

This crimping tool is designed to cut and strip unshielded flat / ribbon telephone cables and crimp RJ11 / 12 (6-pin) 9.65 mm and RJ45 (8-pin) 11.68 mm modular plugs with a parallel crimp. This crimper also automatically adjusts to the size of the ferrule to ensure precision work is done with every crimp. This feature saves the user the time of calculating the force when crimping, as the integrated lock in the crimping tool with release mechanism ensures that the correct amount of pressure automatically reaches the ferrule. These crimping pliers are equipped with multi-component handles, making them more comfortable and reducing fatigue.
Features and Benefits
- Cuts and strips unshielded ribbon telephone cables
- Crimps 6 and 8 pole modular plugs
- Accurate crimping process due to parallel crimping
- High-quality repeat crimping thanks to integrated locking (automatic release mechanism)
- Cutting and stripping tool to length for 6 and 12 mm ribbon cables
- Interchangeable blades
- Set of 4 replacement blades available as spare parts under part number 97 59 06
- Capacities mm² / AWG : RJ11 / 12 (6-pole) 9.65 mm and RJ45 (8-pole) 11.68 mm
- Material: special grade chrome vanadium electrical steel, oil quenched
Typical applications
Crimping pliers can be used in many applications:
- Maintenance and repair
- Electrical installations
- Workshop / Crimping workshop
Product Maintenance
- To maintain proper operation and long service life, the shafts and other moving parts should be lubricated regularly.
- Lubrication* is recommended at least every 10,000 cycles when the tool is exposed to dirt or other contaminants.
- The setting of the crimping die ranges should also be checked
- Adjustment of the pressure adjustment pin is necessary when the tool preload decreases significantly
*Use a light non-mineral oil.
Western plug crimping tool - RJ 11 / 12 / 45
This crimping tool is designed to cut and strip unshielded flat / ribbon telephone cables and crimp RJ11 / 12 (6-pin) 9.65 mm and RJ45 (8-pin) 11.68 mm modular plugs with a parallel crimp. This crimper also automatically adjusts to the size of the ferrule to ensure precision work is done with every crimp. This feature saves the user the time of calculating the force when crimping, as the integrated lock in the crimping tool with release mechanism ensures that the correct amount of pressure automatically reaches the ferrule. These crimping pliers are equipped with multi-component handles, making them more comfortable and reducing fatigue.
Features and Benefits
- Cuts and strips unshielded ribbon telephone cables
- Crimps 6 and 8 pole modular plugs
- Accurate crimping process due to parallel crimping
- High-quality repeat crimping thanks to integrated locking (automatic release mechanism)
- Cutting and stripping tool to length for 6 and 12 mm ribbon cables
- Interchangeable blades
- Set of 4 replacement blades available as spare parts under part number 97 59 06
- Capacities mm² / AWG : RJ11 / 12 (6-pole) 9.65 mm and RJ45 (8-pole) 11.68 mm
- Material: special grade chrome vanadium electrical steel, oil quenched
Typical applications
Crimping pliers can be used in many applications:
- Maintenance and repair
- Electrical installations
- Workshop / Crimping workshop
Product Maintenance
- To maintain proper operation and long service life, the shafts and other moving parts should be lubricated regularly.
- Lubrication* is recommended at least every 10,000 cycles when the tool is exposed to dirt or other contaminants.
- The setting of the crimping die ranges should also be checked
- Adjustment of the pressure adjustment pin is necessary when the tool preload decreases significantly
*Use a light non-mineral oil.
